Selvage Edge Stainless Steel Wire Mesh is woven by stainless steel wire, stabilizing the wire mesh and preventing the wire from moving, a loom finished edge that prevents cloth unraveling, we also call it wrapped edge stainless steel wire mesh, closed edge stainless steel wire mesh, Material can be stainless steel 201,304,316,316L,310S,904L, Brass Wire,Copper Wire... We can produce the selvage edge stainless steel wire mesh from mesh 1 to mesh 20.
A Indonesian client ordered 50 rolls of Mesh 2 Stainless Steel 304 With Selvage Edge .
· Products: stainless steel wire mesh
· Raw Material: stainless steel 304
· Mesh per inch: 2mesh
· Wire Diameter: 1.2mm
· Mesh aperture: 11.5mm
· Roll width: 1000mm
· Roll Length: 30 meters
Selvage Edge Stainless Steel Wire Mesh has the excellent resistance to acid, alkali and high temperature, good tensile strength and abrasion resistant, closed edge stainless steel wire mesh are used widely in sieving and filtration in the food industry, also used in petroleum, chemical industry, chemical fiber, rubber, metallurgy, pharmaceutics area.
We can produce following Selvage edge Stainless Steel Wire Mesh :
| Mesh/Inch | Wire Diameter(mm) | Aperture(mm) |
| 2mesh | 1.20 | 11.50 |
| 2mesh | 2.34 | 10.36 |
| 2mesh | 1.63 | 11.07 |
| 3mesh | 2.64 | 5.67 |
| 3mesh | 2.20 | 6.27 |
| 3mesh | 1.63 | 6.84 |
| 4mesh | 2.64 | 3.55 |
| 4mesh | 2.2 | 4.15 |
| 4mesh | 1.63 | 4.72 |
| 5mesh | 1.63 | 3.45 |
| 5mesh | 1.22 | 3.89 |
| 6mesh | 1.22 | 3.04 |
| 6mesh | 0.91 | 3.31 |
| 7mesh | 1.22 | 2.47 |
| 8mesh | 1.22 | 1.95 |
| 8mesh | 0.91 | 2.26 |
| 8mesh | 0.81 | 2.36 |
| 10mesh | 0.91 | 1.63 |
| 10mesh | 0.81 | 2.16 |
| 12mesh | 0.71 | 1.41 |
| 14mesh | 0.56 | 1.25 |
| 16mesh | 0.46 | 1.03 |
| 18mesh | 0.46 | 0.95 |
| 20mesh | 0.46 | 0.81 |
Mesh Photos

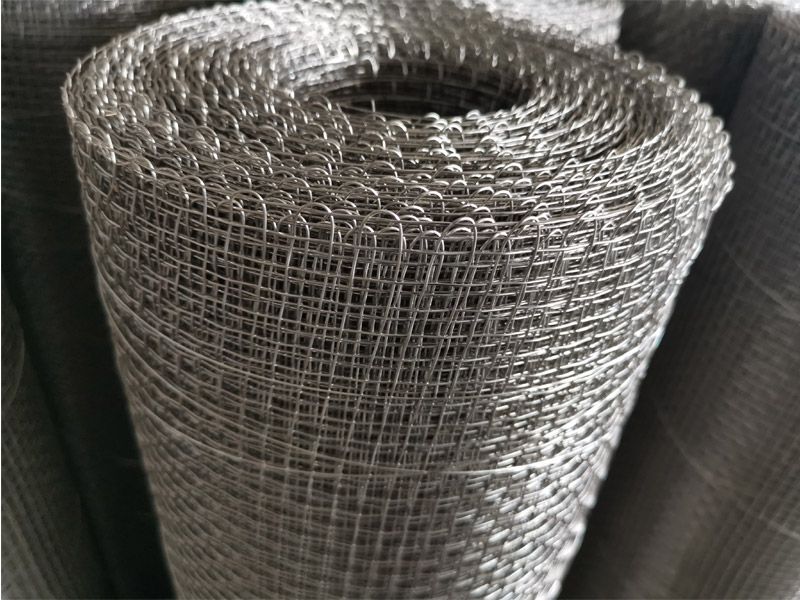

Mesh 2 SUS304 With Selvage Edge

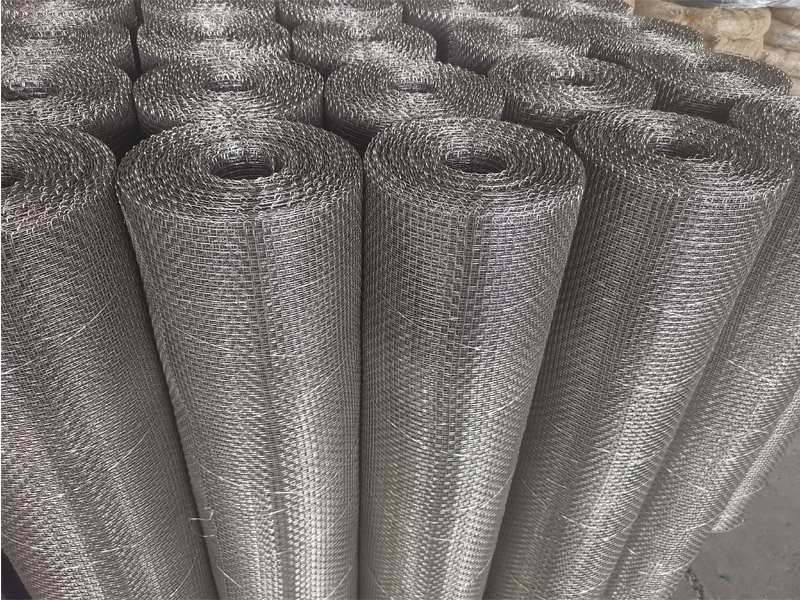

Mesh 2 SUS304 With Selvage Edge
